RE11 MECHANICAL ROTARY ENCODER SWITCH (INCREMENTAL TYPE)

The mechanical rotary encoder, RE11, is a low cost alternative solution to optical-type encoder where extended operating life and a processing seal are not critical. Model RE11 is available with an optional momentary push switch and offer compact design. The encoder features a typical operating life of 10,000 cycles with a choice of 15 or 20 indexing pulses per rotation and integral pushbutton switching action. The device is a precision contacting-type encoder in compact package, 11.7x13.8mm. It comes in a choice of vertical or horizontal PCB mounting versions with a variety of shafts, bushings and base colors available as options. Constructed with metal shaft and metal bushing, the encoder is ideal for applications where high reliability and a rugged design are required. The RE11 mechanical rotary encoder offers the same basic footprint of most encoders on the market today to replace failing, inexpensive encoders in most quality-sensitive applications. The encoders operate at up to 5V switching voltage and 1 to 10mA switching current. It has 100 milliohm maximum contact resistance. The versatile encoder can be used in many industries. Typical applications include instrumentation, consumer audio, navigation systems, domestic electronic appliances and test equipment. Car radio volume and tuning control - Compact disc volume, tuning, level and power controls - Monitor multi-function mode select control - Washing machine timer and temperature setting controls

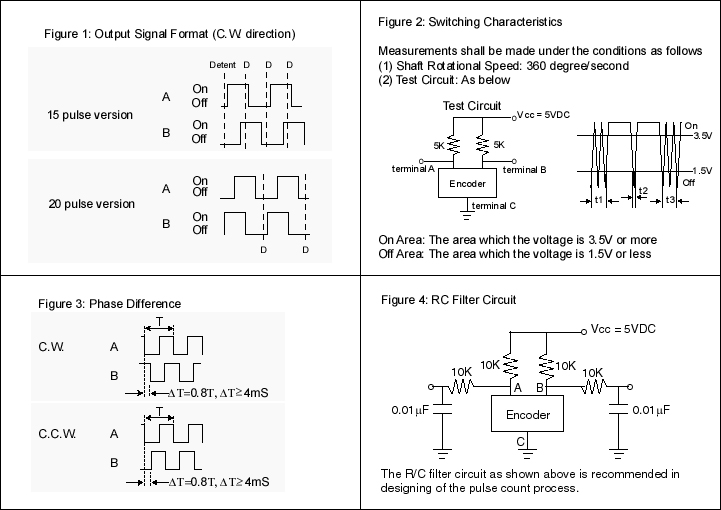

SPECIFICATION (encoder) Type: Incremental and mechanical Resolution: 20 or 15 (pulses/rev.) Power Rating: 5VDC 10mA (1mA min.) Contact Resistance: 100 milliohms max. @ initial Insulation Resistance: 100 megaohms min. @ 250VDC 1mA Dielectric Strength: 300VAC for 1 minute (leak current 1mA) Chattering: t1* t2<2ms Sliding Noise: t1, t3<3ms, t2<2ms Phase Difference: 0.08T (min.) Electrical Life: 20,000 operations Number of Detent: 20 (20-pulse encoder), 30 (15-pulse encoder) Detent Torque: 3~20mN.m (30.1~200.4gf.cm) Push-Pull Strength of Shaft: 20N(2.04kgf) RoHS Compliant: yes SPECIFICATION: Brochure Contact: info@switchchannel.com	SPECIFICATION (switch) Circuitry: SPST Switching Function: Off-(on), normally open, momentary contact Contact Resistance: 100 milliohms max. @ initial Insulation Resistance: 100 megaohms min. @ 250VDC 1mA Dielectric Strength: 300VAC 1mA for 1 minute Chattering: <10ms Push Stroke: 0.5mm Operating Force: 4.5+1.5N (450+153gf) Operating Temperature: -30 to +70 Celsius Storage Temperature: -40 to +85 Celsius MATERIAL (lead free) Shaft and Bushing: Aluminum alloy Clamping Ring: White iron wire Wheeling Plate: PPO Pulsated Plate: PC Basic Plate: PBT Terminals: Phosphor bronze plated silver Push Plate: POM Switch base: POM Spring Piece: Beryllium copper Fixed Framework: Tin sheet plated chromium

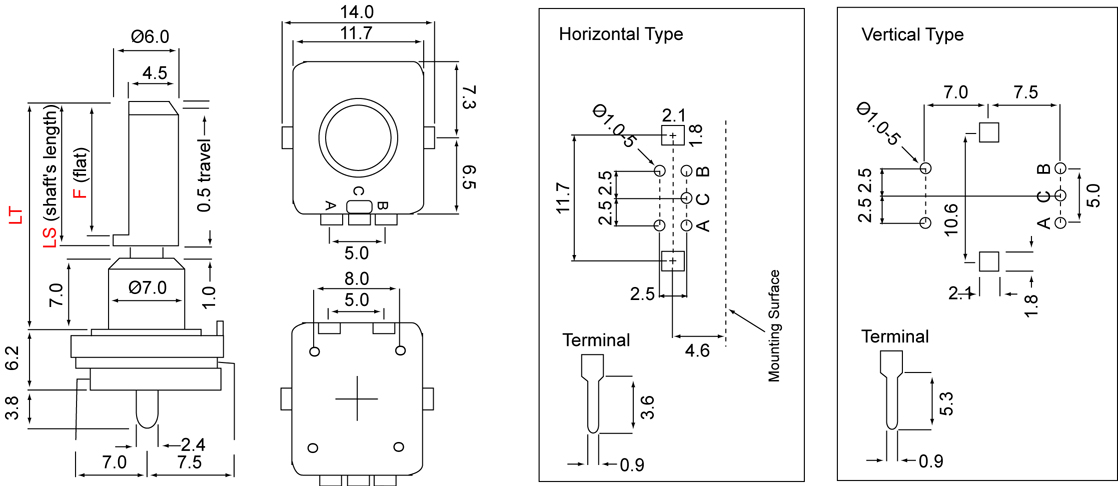

RE11CT-V1Y12-EF2CS Orientation: vertical Output: quadrature (incremental) Rotation: endless Resolution: 15 pulses/revolution Detent: 30/revolution Switch: single pole; push-on Bushing: threaded; 7mm in length Shaft: 16mm in length; 6mm in diameter; D-shape Flat: 10mm Fixed Pillar: yes	RE11CT-V1N12-MF2CS Orientation: vertical Output: quadrature (incremental) Rotation: endless Resolution: 15 pulses/revolution Detent: 30/revolution Switch: single pole; push-on Bushing: non-threaded; 7mm in length Shaft: 13.5mm in length; 6mm in diameter; D-shape Flat: 10mm Fixed Pillar: yes	RE11CT-V1Y12-AF2CS Orientation: vertical Output: quadrature (incremental) Rotation: endless Resolution: 15 pulses/revolution Detent: 30/revolution Switch: single pole; push-on Bushing: threaded; 7mm in length Shaft: 12mm in length; 6mm in diameter; D-shape Flat: 10mm Fixed Pillar: yes	RE11CT-V1N12-ZF7CS Orientation: vertical Output: quadrature (incremental) Rotation: endless Resolution: 15 pulses/revolution Detent: 30/revolution Switch: single pole; push-on Bushing: non-threaded; 7mm in length Shaft: 11mm in length; 6mm in diameter; D-shape Flat: 8mm Fixed Pillar: yes	RE11CT-V1N12-LF6CS Orientation: vertical Output: quadrature (incremental) Rotation: endless Resolution: 15 pulses/revolution Detent: 30/revolution Switch: single pole; push-on Bushing: non-threaded; 7mm in length Shaft: 5.7mm in length; 6mm in diameter; D-shape Flat: 5mm Fixed Pillar: yes


RE11CT-V1Y12-AF2AS Orientation: vertical Output: quadrature (incremental) Rotation: endless Resolution: 20 pulses/revolution Detent: 20/revolution Switch: single pole; push-on Bushing: threaded; 7mm in length Shaft: 12mm in length; 6mm in diameter; D-shape Flat: 10mm Fixed Pillar: yes	RE11CT-V1Y12-LF6AS Orientation: vertical Output: quadrature (incremental) Rotation: endless Resolution: 20 pulses/revolution Detent: 20/revolution Switch: single pole; push-on Bushing: threaded; 7mm in length Shaft: 5.7mm in length; 6mm in diameter; D-shape Flat: 5mm Fixed Pillar: yes	RE11CT-H2Y12-EF2AD Orientation: horizontal Output: quadrature (incremental) Rotation: endless Resolution: 20 pulses/revolution Detent: 20/revolution Switch: single pole; push-on Bushing: threaded; 7mm in length Shaft: 16mm in length; 6mm in diameter; D-shape Flat: 10mm Fixed Pillar: yes
