EV-12 Voltage Selector Switches


Specifications
Circuitry: SPST, SPDT, DPST, DPDT
Switching Function: on-off, on-on
Power Rating: 12A 125/250VAC (UL, CSA); 10(1)A 250VAC~µT85 (VDE, D, S, N, Fl).
Contact Resistance: 20 milliohms max. @ initial
Insulation Resistance: 500 megaohms min. @ 500VDC
Dielectric Strength: 3,800VAC for 1 minute (cover to terminal); 2,000VAC for 1 minute (terminal to terminal)
Electrical Life: 300 operations
Terminal: solder lugs
Operation Force: 500+/-200g
Push Stroke: 7.80mm
Operating Temperature: 0 to +85C
Safety Standard Approval: CSA, UL, DEMKO, FIMKO, NEMKO, SEMKO, VDE
RoHS Compliant: yes
Manufacture: Solteam Electronics
Material List
Actuator and Base: polybutylene terephthalate (PBT) or nylon 66 type
Frame: zinc plated iron
Contact: silver plated copper
Spring: steel
Terminal: tin plated copper

Catalog Sheet
Contact: info@switchchannel.com
P/N: EV-12-21B-6Z P/N: EV-12-61B-6T
P/N: EV-12-31B-1Y

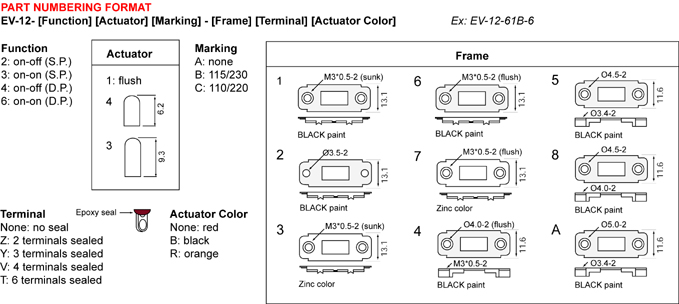

Voltage selector switch EV12 dimension drawing
